question Where is hydraulic steering oil dipstick on Zeter 8045?
- Thread starter abram
- Start date
- Joined
- Nov 30, 2011
- Messages
- 1,442
- Location
- Republic of Ireland
- First name
- diy farmer
Machinery:
HSX 140, 2x 8111, CNH 895, MF50B. Heap of machinery.

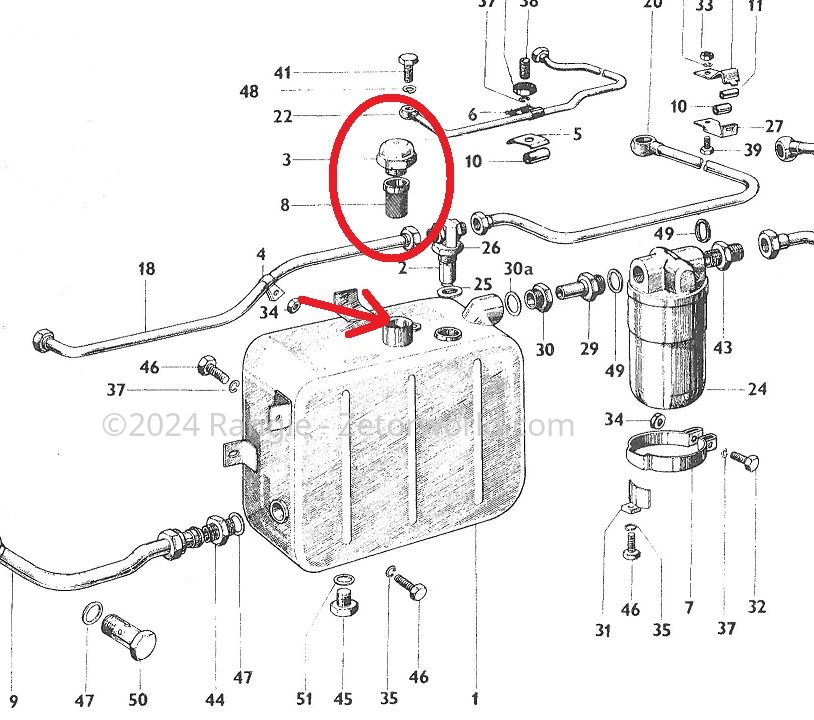

There is no dipstick. If you open the power steering tank on right hand side of the engine, there should be a gauze screen under the filler nut that is about the length of your middle finger and the oil should be up to the bottom of that screen.
- Joined
- Sep 6, 2023
- Messages
- 5
- Location
- Caithness, Scotland
- First name
- Alec
Machinery:
1977 Zetor 12045
1979 Zetor 6945
As said, no dipstick just look in the top of the reservoir on the RHS of the engine.
Lift the gauze screen out and check to see the condition of the fluid as well, you may need to dump it and put fresh in (depending on what they have used in the past).
Fill it up, exercise lock-to-lock a few times and top it off to just under the gauze
Lift the gauze screen out and check to see the condition of the fluid as well, you may need to dump it and put fresh in (depending on what they have used in the past).
Fill it up, exercise lock-to-lock a few times and top it off to just under the gauze
