question Zetor Proxima 6441 Workshop Manual - hard/impossible to find

[ZetrProx6441]

It appears the workshop manual for a 6441 Proxima is near impossible to find. However, I did find a service manual that covers the 6341 Super & related models. It looks like the last year of production for the 6341 was 2004 while the 1'st year of production for the 6441 was 2004 as well. So the question I have is are the two tractors similar enough in design that the workshop manual for a 6341 would be useful when working on a 6441? Thanks!



[Joachim]

So far I know it give not "that one workshop manual " for Proxima 6441.

What it gave was a engine workshop manual eg 222212503
a gearbox workshop manual 222212437


a front axle (Carraro) manual 222212455


and a hydraulics manual 222212518


And later the since 2013 a online portal with all service informations. If you a european member you have the right to view in on a dayli base and for payment.

As I repaired the one or other Zetor /Zetor module, I collect over the time many Zetor books, informations and brochures.
For Proxima engines 7204, 1104, 1204 and 7205, 1005, 1105, 1205, 1305 and Forterra 1204, 1004, 1304, 1404 and 1504 I have it in German language. For Carraro 20.14 and 20.16 front axle also as for some types the electric wire plans.
What I also have: gearbox manual for Proxima plus, calibration manual for Proxima and gearbox manual for Z 6421 to Z 8441 Proxima.
And much others for Zetor 25 over Zetor UR1, UR2, UR3, Proxima and Forterra up to Zetor Major 80. But mostly only up to production year 2015...
The bad point is - some of this is clearly marked as only for Zetor service partners, so I cant share it.

So the question I have is are the two tractors similar enough in design that the workshop manual for a 6341 would be useful when working on a 6441?

In many parts yes, but a Proxima 6441 has a complete new engine, other electric wire plan and some changes at gearbox.
Yes the Proxima 6441 gearbox is based on Zetor Super series but not the same.



[ZetrProx6441]

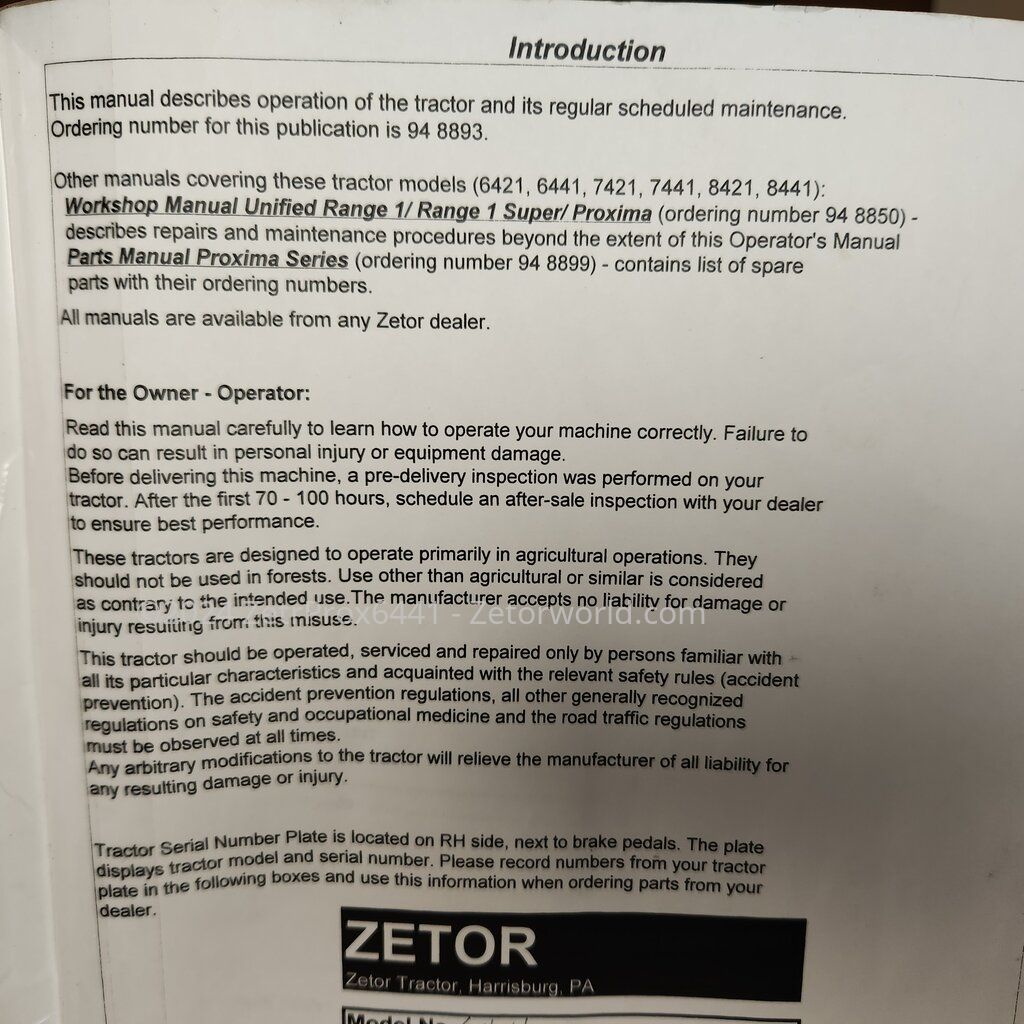

Thanks for your response! I know they are different in some ways but just looking for something to help with general repairs such as brakes. I have the original operator's manual that covers regular maintenance but it doesn't cover repairs. Part # for the 6441 workshop manual is 94 8850 & parts manual is 94 8899. These publications don't seem to be available anywhere even though the inside cover of my operator's manual says you can get them from any Zetor dealer lol I might try reaching out to Zetor North America which is the only place someone in the US can get OEM parts but I expect they won't be able to help me since I'm not a dealer but just a guy who wants to work on his own tractor that's over 20 years old.



[Joachim]

When you have no problem to translate it for yourself - I can send you some relevant pages in German language.

948850 looks not like a original Zetor book number, the most of them have 9 chars and begin with 222.xyz.xyz
