question Zetor ur1( Zetor 4911) brakes need help

[AntoPro2576]

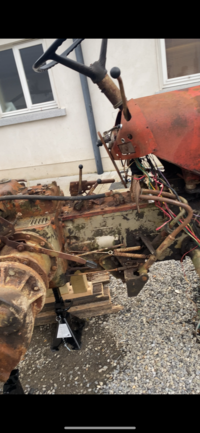

Hi there. I am wondering if anyone has any info or diagrams on what i need for the brakes on my zetor 4911. I have master cylinders but don't know how to fit them.

Thanks



[Joachim]

Hello Anthony.



What exactly is your trouble with? Can you explain a little bit more your question please?



[AntoPro2576]

I have purchased 2 brake master cylinders and woyld like a diagram that shows how the braking system works and what other parts i need to get them working

Thanks



[Joachim]

I don't know of a brake diagram for the 4911, but basically it's very simple, you have the 2 master cylinders and at the end of them the brake pressure compensator and from there a brake line goes to the right and one to the left wheel brake cylinder.

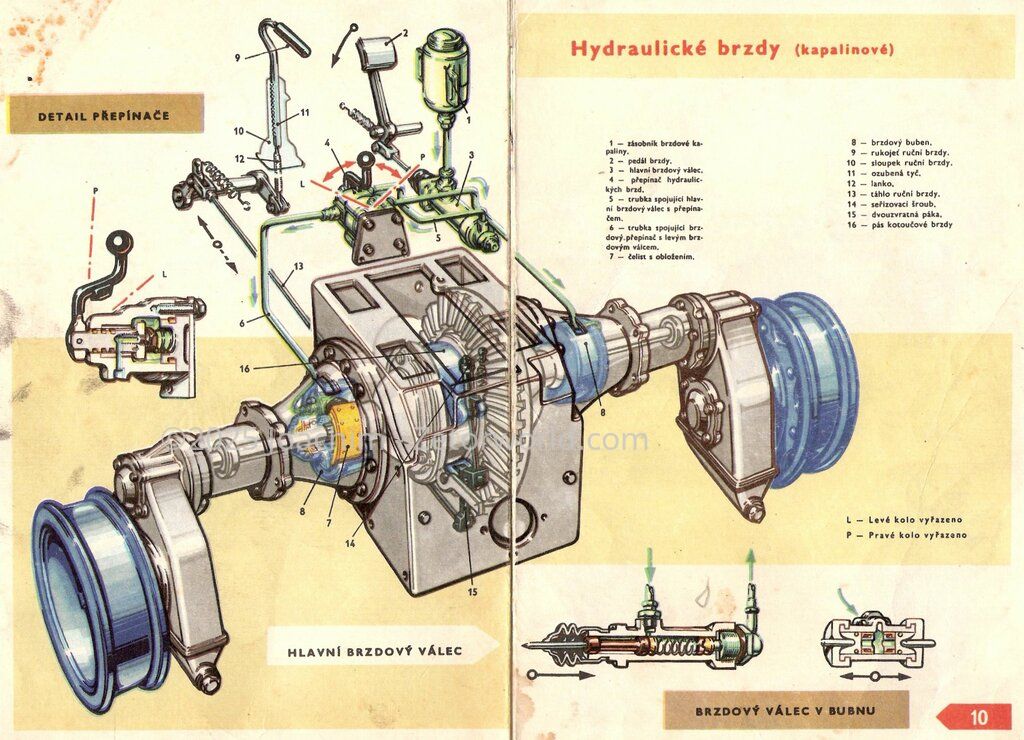

The last picture is of the older models with only one master brake cylinder and no pressure equalizer, but otherwise basically identical.


That's the basic structure, so it's quite simple and classic.



[AntoPro2576]

Thanks very much I have the pipes so all I need is the compensator?
